Mobile Robot Platform Series

Stäubli designs and manufactures premium mobile robot solutions. Over the last 20 years, our mobile platforms have delivered agile motion on the factory floor for manufacturing automation to customers worldwide.

Our mission is to be the leading mobile robotics partner for high payload applications.

Our unique portfolio of compact platform series delivers outstanding performance such as omni-directional motion, high positioning precision of 5 mm and robustness transporting the highest payload from 1.5 tons up to 450 tons. Synchronized by our software, the Stäubli mobile robot fleet performs in the most efficient way by providing insights for data-driven decision making.

When design meets performance

The mobile robot platform PF3 opens up new industrial applications and deliver the right solution moving up to 3-ton payloads.

More info

Main features and benefits

Agile motion
Patented drive unit
Modular design
Safe motion
Fleet control software

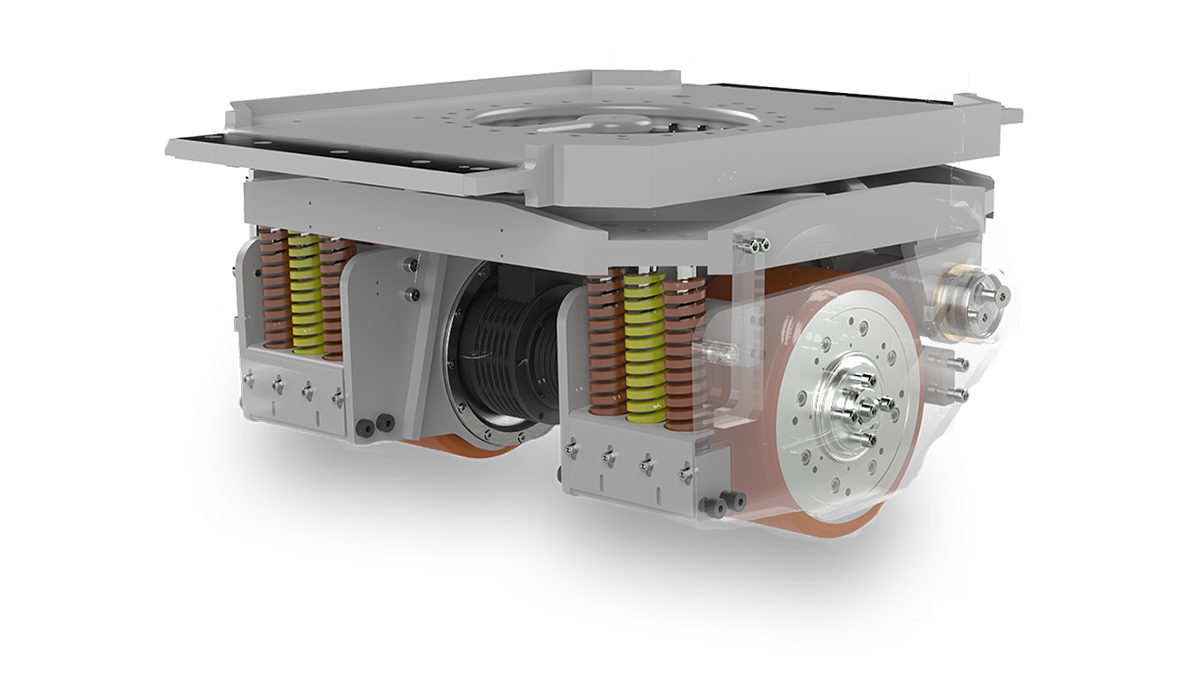

Patented drive unit

Smart & highly reliable technology

Reducing downtime & TCO (Total Cost of Ownership)
No extra costs to adapt the infrastructure

Up to 450 tons still with compact design

Offering a wide payload range bringing flexibility
Addressing all market needs

± 5 mm positioning precision

Reducing the needs for extra handling devices
Optimizing investment

Omnidirectional motion

High agility for more flexible intralogistics scenarios

Unique design based on high product modularity

Lift unit

Electric spindle, electric scissor or hydraulic cylinder lift unit

Conveyor

Connection with other conveyors linking different production stations

Swap body

Moving containers on the company parking area ensuring seamless material flow

Housing

Protecting the transported good when operating outdoor

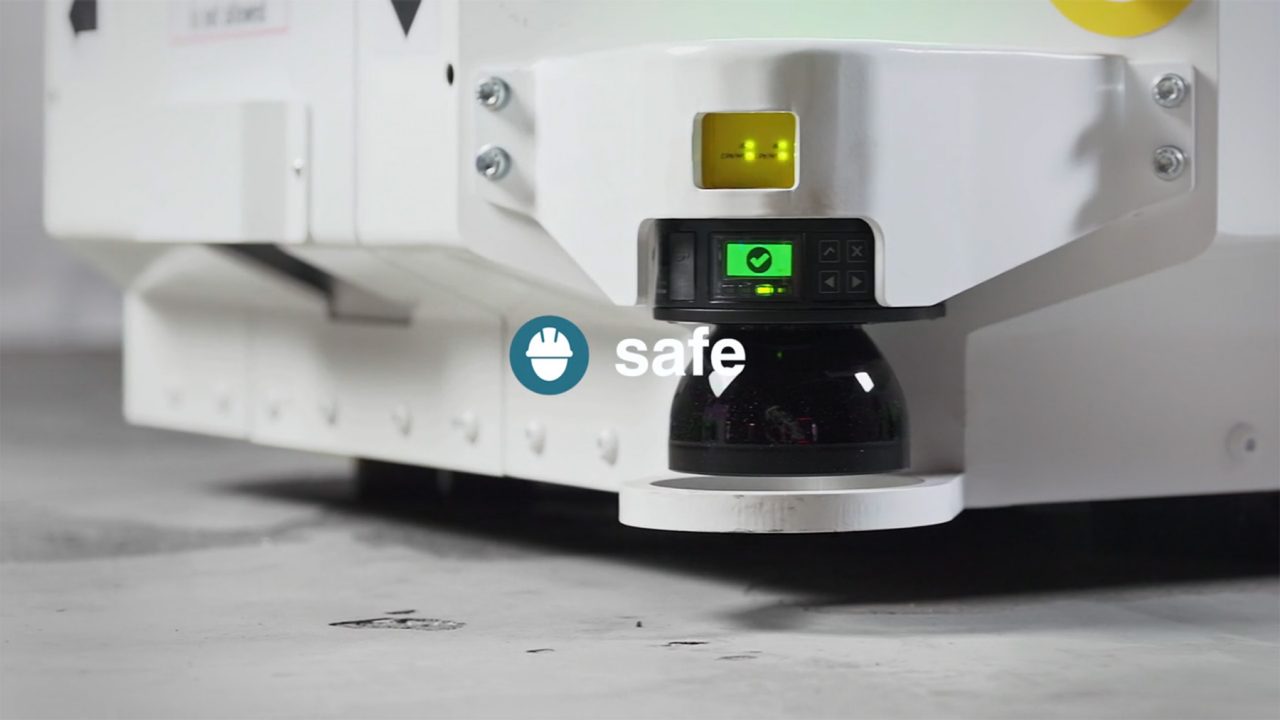

Safe motion

The state-of-the-art safety functions embedded in our AGV ensure the highest safety level when it comes to collaboration between human and our AGVs.

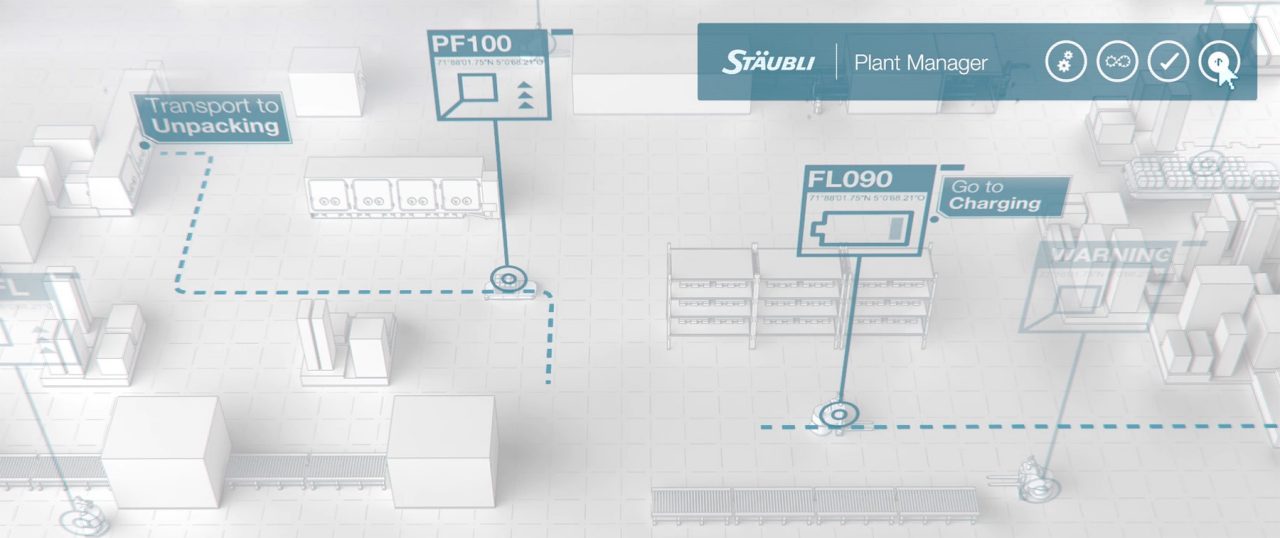

Fleet control software

Synchronized by our software, the AGV fleet performs in the most efficient way by delivering data insights to your advantage.

Connecting your factory floor and delivering data-driven insights. We move your business.

High payload

A unique portfolio of compact platform series are able to transport goods from 1.5 tons up to 450 tons.

Outdoor

Operating indoor and outdoor to ensure end-to-end solutions.

Coupling mode

With our mobile robot platforms moving in coupling mode, the highest flexibility with high precision and smooth motion is ensured all along the manufacturing process.

Cleanroom

Our dedicated cleanroom production site allows our mobile robot platforms to address sensitive environment applications.

High payload
Outdoor
Coupling mode
Cleanroom

Technical specifications

Platform	PF3	PF3 OMNI	PF6	PF10	PF30	PF80
Max payload (tons)	3	3	6	10	30	80
Dimension L x B x H* (mm)	1750 x 996 x 350	2400 x 1035 x 350	2390 x 1320 x 360	3000 x 1755 x 350	3650 x 2135 x 560	4150 x 2665 x 660
Drive type	Tricycle	Omnidirectional
Max speed (m/s)	up to 1.6	up to 1.1			up to 1.4
Laser navigation	✓	✓	✓	✓	✓	✓
