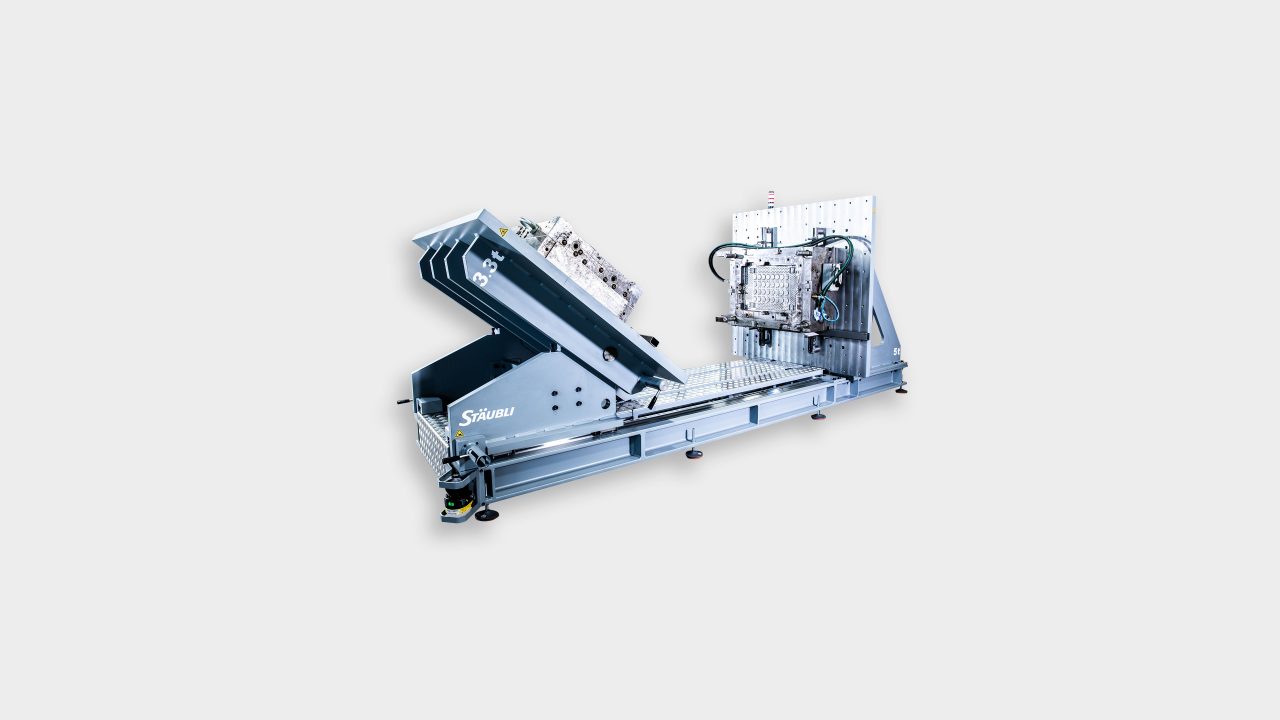

Mold maintenance stations

Multifunctional and safe: The mold maintenance stations MMS ensure efficient mold maintenance while adhering to the highest quality and safety standards. The customer-specific service stations provide optimal conditions for predictive maintenance: many functions and components of the molds can be tested under real operating conditions.

APPLICATION

Cutting, turning and closing mold and mold halves outside the machine allows:

Maintenance, repair and preservation of injection molds
Cleaning, reworking or replacement of cavities
Functional check of the core pullers and of the ejector system(s)
Testing and cleaning the temperature control circuits
Heating of individual / all circuits - thermal equilibrium control
Maintenance and test of hot channel and hot channel nozzles
Maximize the safety of your employees
Significant increase in IMM OEE

Technical specifications

Options

Mold weight up to 130 t
Dimensioning of closing and opening forces according to customer specifications
Mold dimensions and installation height tailored to customer specifications
Perfect ergonomic working height
For optimal working conditions the clamping plate on the nozzle side is surrounded by an access platform
Both clamping plates can be moved axially
The nozzle side of the clamping plate can be swiveled by 90 °
Protection of the system by light curtain for maximum accessibility from all sides
Wired, user-friendly mobile panel
Loading of the system with the existing in-door crane

Euromap, SPI, JIS or customer specific drill pattern with cutouts to facilitate mold maintenance in the clamping plates
Mechanical, hydraulic or magnetic clamping system
Media transmission with mono-couplings or multi-couplings (manual or automatic)
Ejector unit with automatic ejector coupling
Horizontal loading with mold changing table or mold changing trolley
Clamping plate on the ejector side
Operation via wireless mobile panel
Protected by a protective fence
