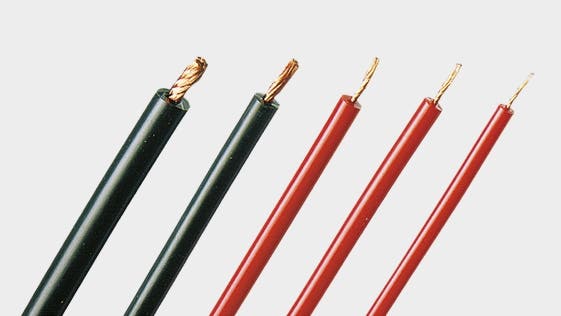

Super flexible, reinforced insulated stranded wire. Super-fine Cu strand, bright-soft, tightly twisted. Silicone insulation, halogen-free and therefore environment-friendly.
Typical Application
Flexible high voltage wiring, hand-held test leads for high voltage tests.
ORDER NO. | TYPE | RATED VOLTAGE V | RATED CURRENT A |
|---|---|---|---|
SILI-HV 0,5 | 25001) / 50002) | 10 | |
SILI-HV 0,75 | 38001) / 75002) | 15 | |
SILI-HV 1,0 | 50001) / 100002) | 19 | |
SILI-HV 2,5 | 63001) / 125002) | 32 | |
SILI-HV 2,5/9 | 300002) | 32 | |
SILI-HV 6,0 | 200002) | 54 |
Click on the Order No. to open the dedicated data sheet.
