HIGH-FREQUENCY MEASUREMENT

Touch-protected BNC Programme

BNC SAFETY TEST LEADS

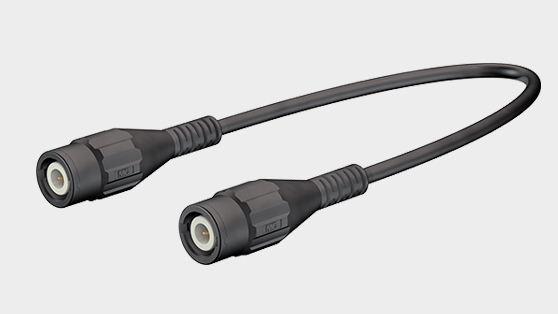

XLSS-58 / XLSK-58
Touch-protected coaxial test leads. Versions with BNC male connectors on both ends or with male and female connector.

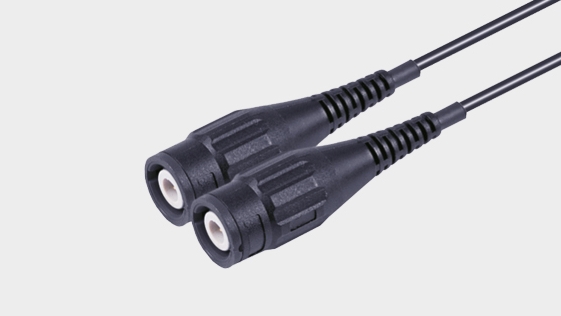

XLSS-174
Touch-protected PVC-insulated coaxial test leads. Version with BNC male connector on both ends.

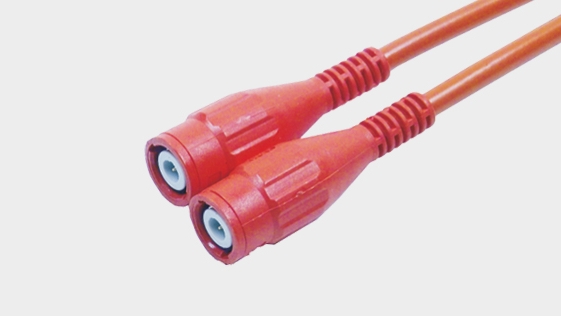

XLSS/SIL
Touch-protected silicone insulated coaxial test leads with BNC male connectors on both ends.

TOUCH-PROTECTED BNC CONNECTORS AND BNC PANEL-MOUNT SOCKETS

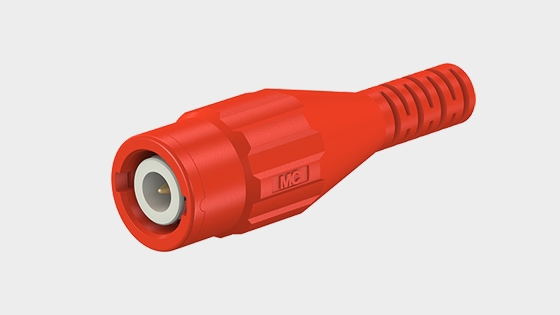

XBS-58 / XBK-58
Touch-protected BNC male and female connectors for production of touch-protected BNC leads (RG58).

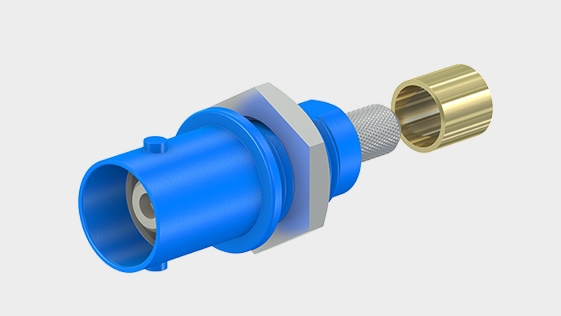

XBB-C58
Touch-protected BNC panel-mount sockets for accepting BNC male connectors.

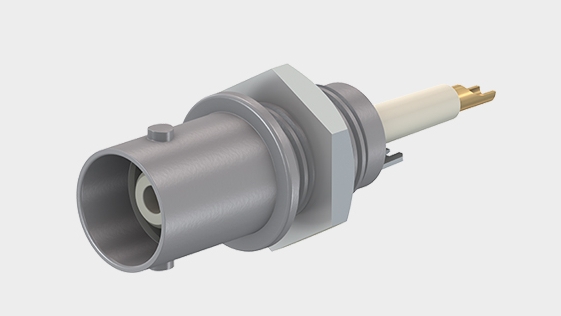

XBB-L / XBB-LL
Touch-protected BNC panel-mount sockets for accepting BNC male connectors.

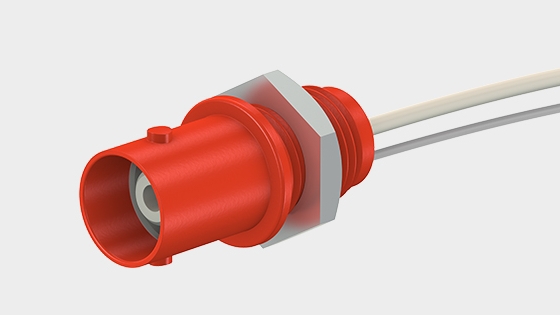

XBB-P / XBB-PL
Touch-protected BNC panel-mount sockets for accepting BNC male connectors.

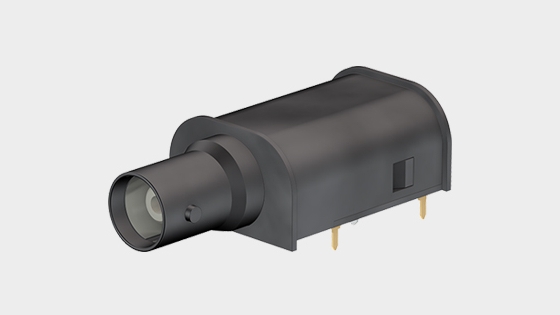

XBWB-P
Touch-protected BNC angled socket for mounting on printed-circuit boards, touchprotected according to

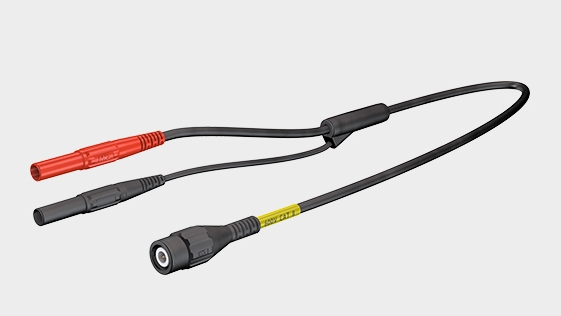

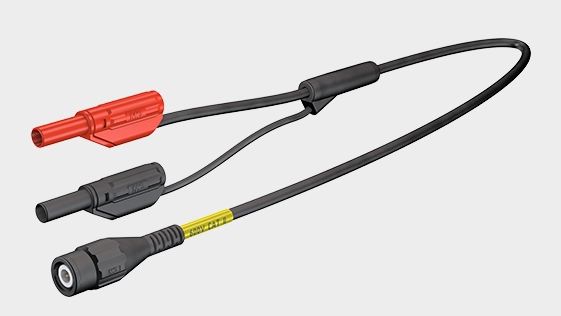

BNC / Ø 4 MM ADAPTERS AND ADAPTER LEADS

BNC LEAD COUPLERS

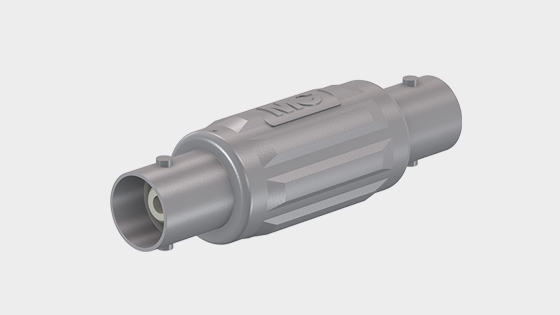

XF-F
Lead coupler. The inner conductors and the shields are interconnected.

BNC SIGNAL DISTRIBUTORS

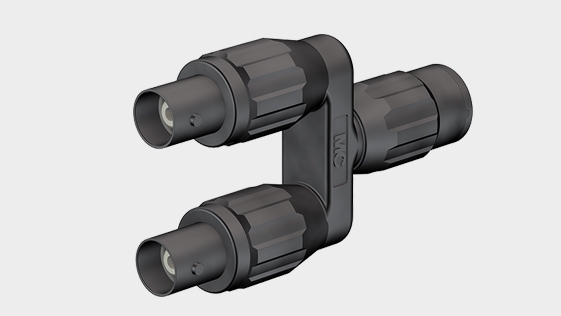

XM-FF
Signal distributor with three BNC safety connectors. All inner conductors and all shields are interconnected.

TOUCH-PROTECTED ADAPTERS AND CONVERTERS

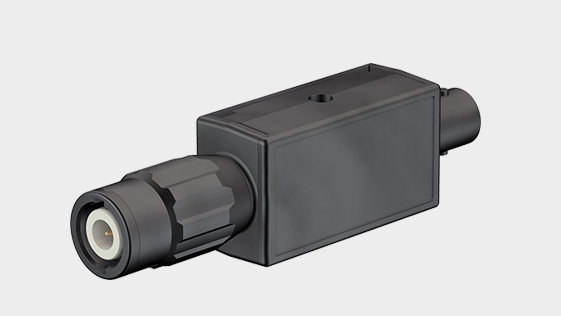

BNC Box XBKS
Touch-protected empty BNC box for individual applications. The components in the box are connected by soldering.
