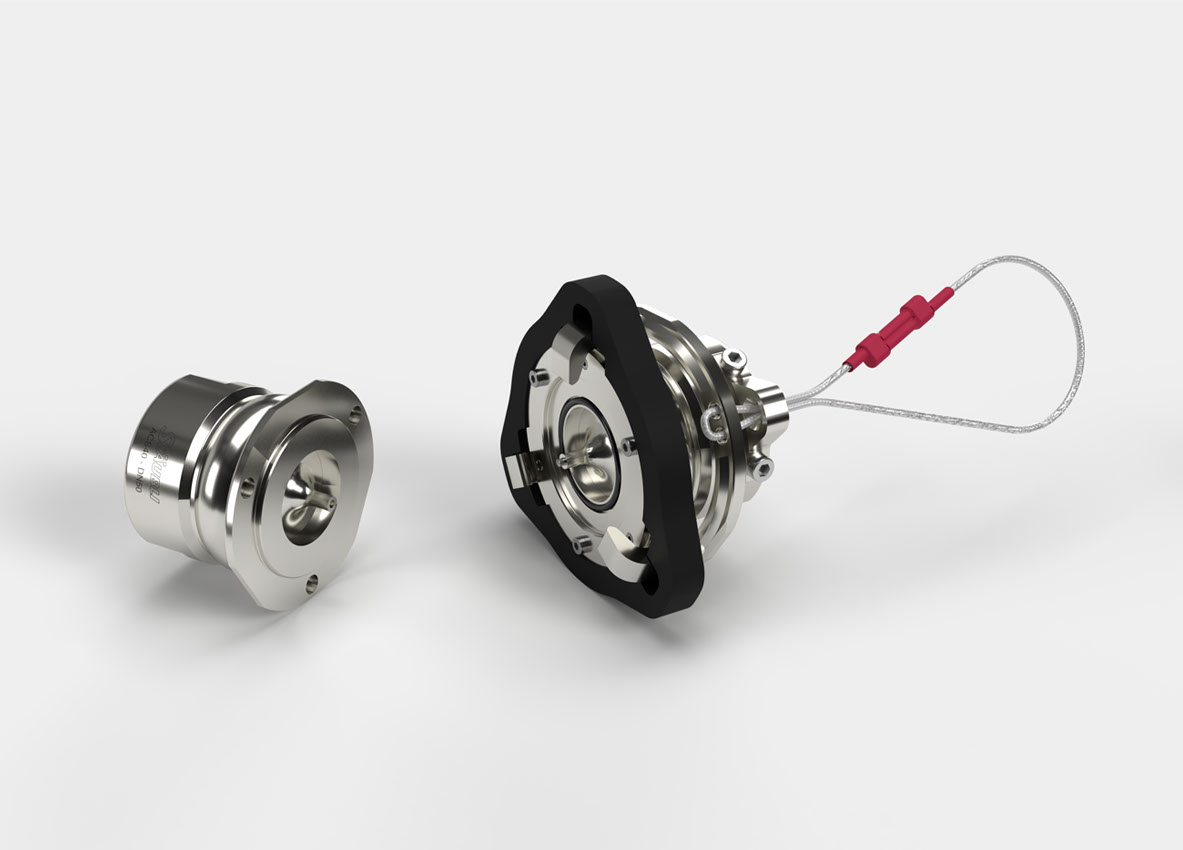

The KBH breakaway couplings was particularly developed for low temperature applications / cryogenics and provides high flow rate with a maximum level of safety.
Using this breakaway coupling offers protection across the entire temperature range from -196 °C to +65°C.
Thanks to the breaking pins technology, the KBH separate the line at a defined tensile load.The two coupling halves are equipped with a non-return valve each that allows to close the line impermeably when it is separated and to exclude that the fluid escapes into the environment.
Cryogenic media such as liquified gases with very low temperatures (e.g. LNG).
Mainly stainless steel.
*depending on the model and operating conditions
