August 3, 2022
Assembling and installing the small eBOS (electrical Balance of System) components can make or break the financial and operative success of a PV project. The official Stäubli tutorial dives into the details of safe and reliable connector assembly.
A common source of PV module failures is improperly installed connectors, according to a study by TÜV Rheinland. One reason for defective connections in the eBOS application can be inaccurate wiring and crimping. Often, it’s these small details that have a significant impact on the bankability of a PV project. In PV plants’ quality, efficiency and performance define profitability. Therefore, when wiring the PV system, correct assembly and crimping with qualified tools is crucial.
In the latest video tutorial, Stäubli guides the user step by step through the assembly process for MC4 and MC4-Evo 2 connectors using the qualified Stäubli tools. Paying attention to a few fine points when assembling and installing the solar connectors pays off with a long-lasting and safely running PV system. Have a look at how we navigate you through each phase of the installation and watch the video.

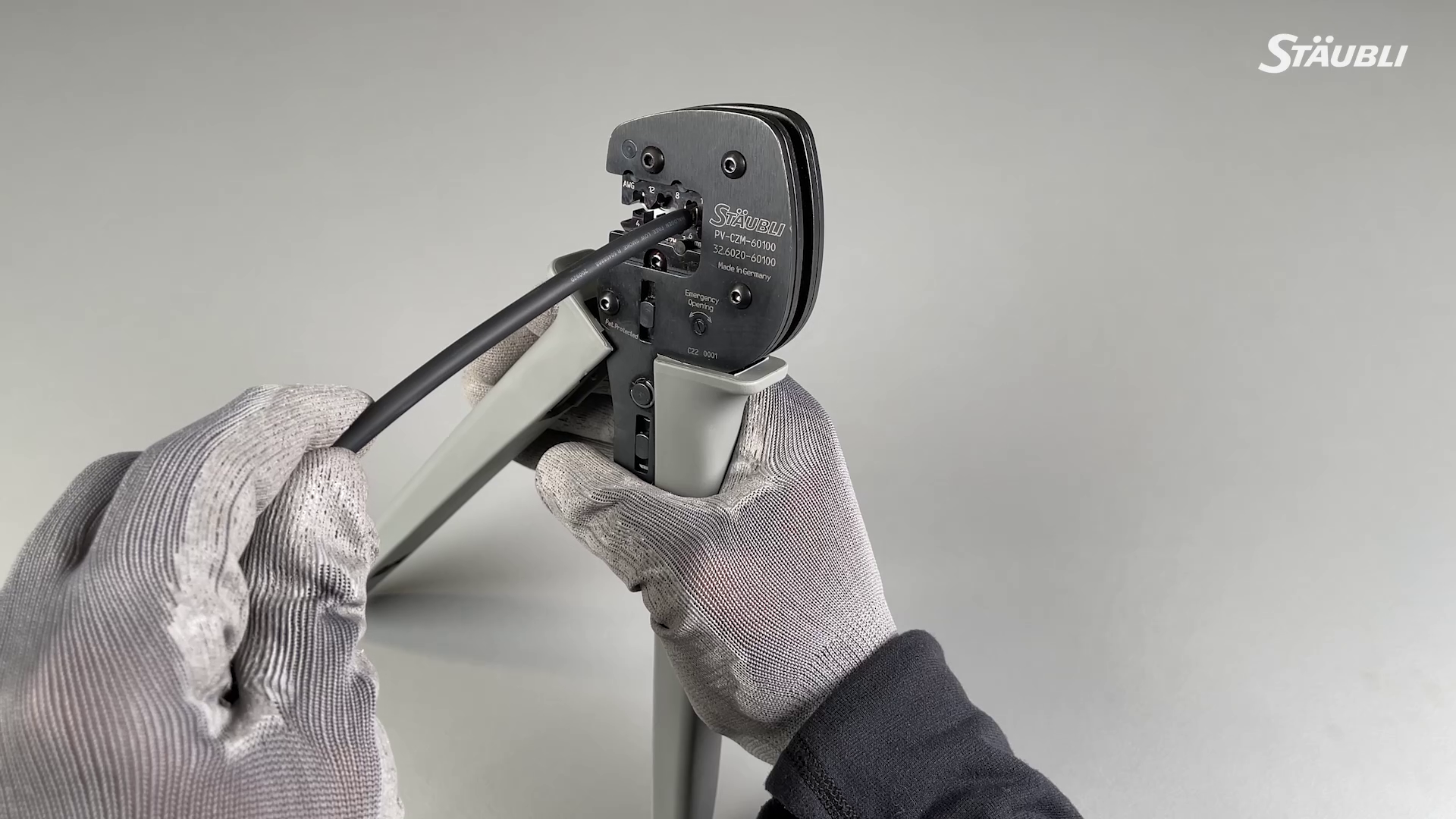

Paying attention to the fine points in crimping pays off.

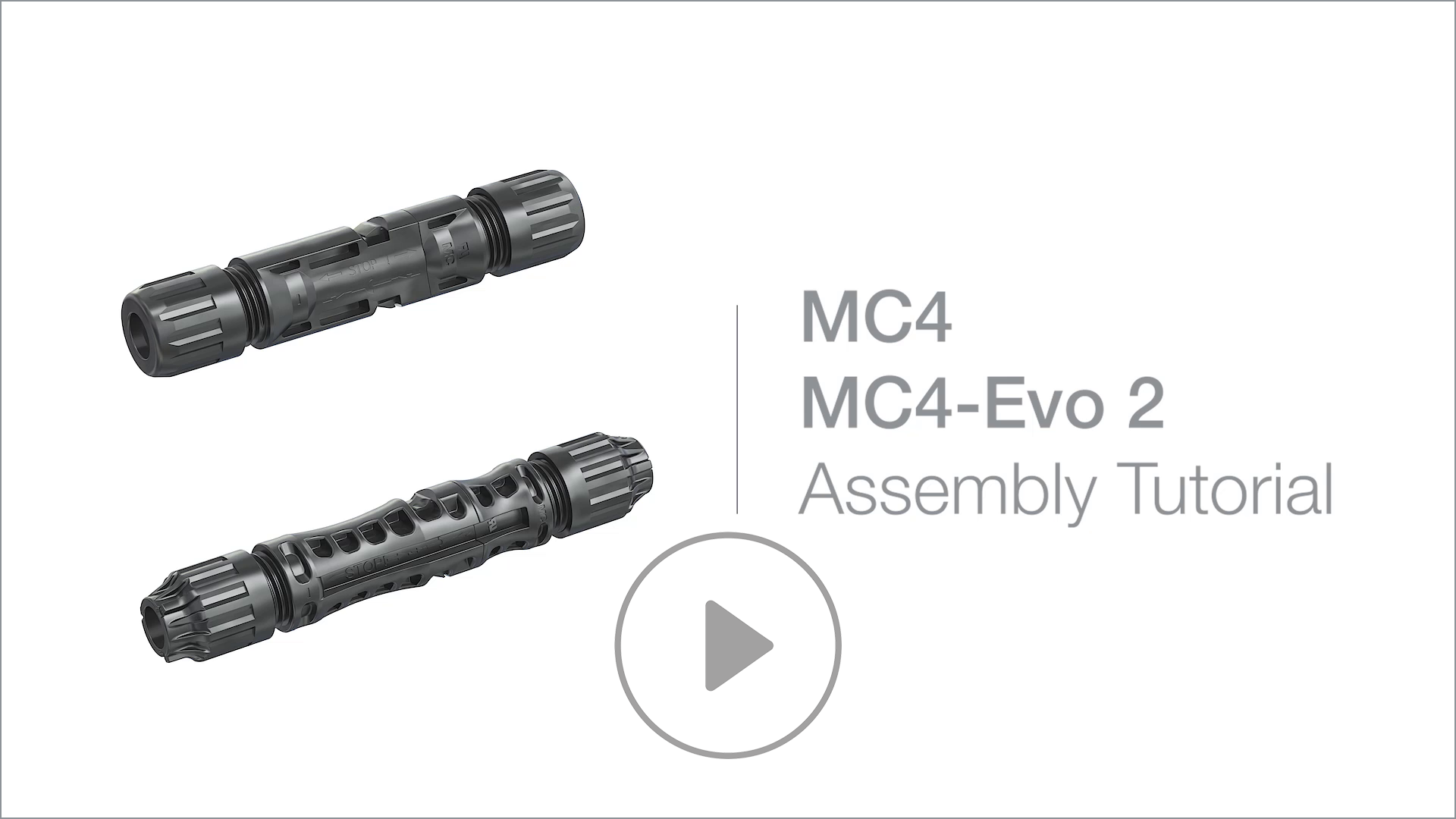

A step-by-step guidance through the relevant phases for installing MC4 connectors
