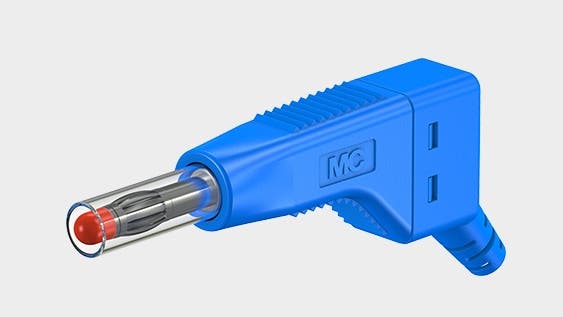

Stackable, Ø 4 mm, with spring-loaded MULTILAM for self-assembly of test leads.
With retractable sleeve to prevent accidental touching.
Screw connection.
Order No. | Type | Rated voltage/current | Cable (A) | |
|---|---|---|---|---|
ZGL-410 | 30 VAC / 19 A 60 VDC / 19 A | max. Ø 3.4 mm 1.0 mm² max. Ø 3.9 mm 1.0 mm² | Ni | |
ZGL-425 | 30 VAC / 32 A 60 VDC / 32 A | max. Ø 3.4 mm 2.5 mm² max. Ø 3.9 mm 2.5 mm² | Ni |
Click on the Order No. to open the dedicated data sheet.
