MODULAR CONNECTOR SYSTEM

CombiTac uniq – the modular connector for the highest requirements

The CombiTac uniq is perfectly suitable for your individual applications where you need highest performance. Completely customizable and capable of up to 100’000 mating cycles, it guarantees long-life performance under the most demanding mechanical and environmental conditions.

Configure your own CombiTac

QUICK ACCESS

High power up to 600 A
Up to 100’000 mating cycles
Signal, power, data, thermocouple, coaxial, fiber optic contacts and couplings for fluid and pneumatic
All-in-one space-saving modular connector
Fully customizable
Available for panel mounts and housing
Up to ± 4 mm high misalignment compensation

PV installations are expected to last reliably for more than 25 years. Therefore, when wiring the PV system, correct and safe assembly and crimping with qualified tools is key. Follow the step-by-step guidance through assembly and crimping for Stäubli solar connectors. By using the qualified tools by Stäubli for PV connector installation you enhance the quality of the PV DC connection.

Compact

High mating cycles
up to 100,000

Leakage-free
couplings

Fully customizable

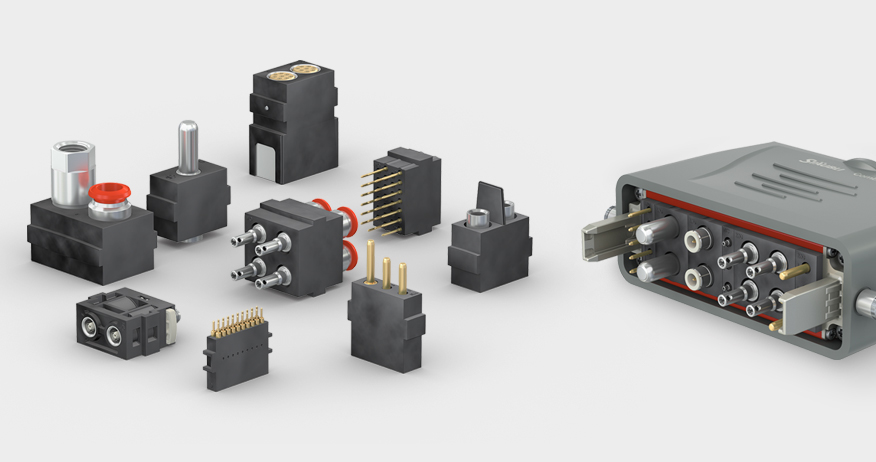

Modules and contacts for CombiTac uniq

The CombiTac uniq series includes a variety of contact types such as power up to 600 A, signal, data up to 10 Gigabit, fiber optic, thermocouple, pneumatic and leakage-free fluid coupling.

See all modules and contacts

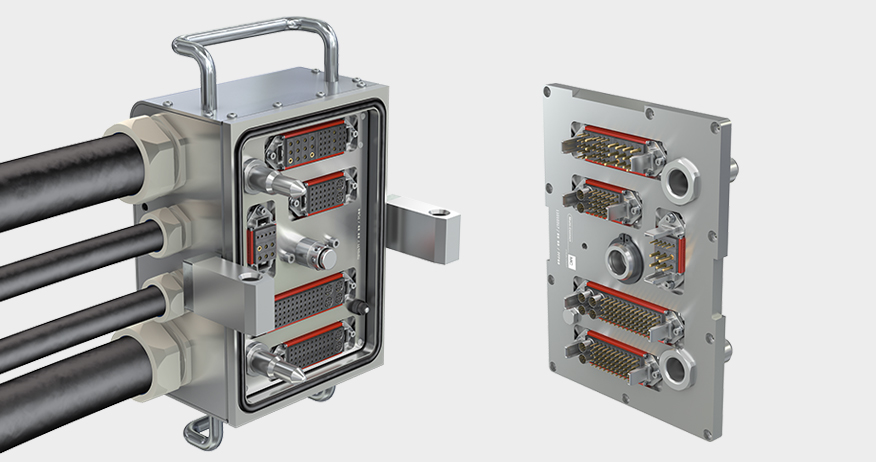

Housing and panel mount for CombiTac uniq

CombiTac uniq is available in different options tailored for panel mounting or with specific housings to meet your requirements. Different frame sizes and several housing variations are available in plastic and aluminum.

See all housing options

Cable assembly – plug and play

Up on request, Stäubli offers cable harnessing for CombiTac straight from the factory. This helps to save installation time and reduces assembly costs.

More about cable assembly

Easy-to-use configurator

Our CombiTac configurator enables you to create a customized CombiTac for your requirements. Interactive 3D graphics guide you through the process. After successfully completing the configuration, the STEP files are available for you to download.

Configure CombiTac now

CombiTac documentation

CombiTac documentation includes catalogs, assembly instructions and videos.

Click for more documents

Could not find what you are looking for?

We’re happy to help!

CombiTac is a great solution that can be used for almost every application. Should you have different requirements or could not find what you were looking for, please do not hesitate to reach out to our specialists.
