Modules and contacts

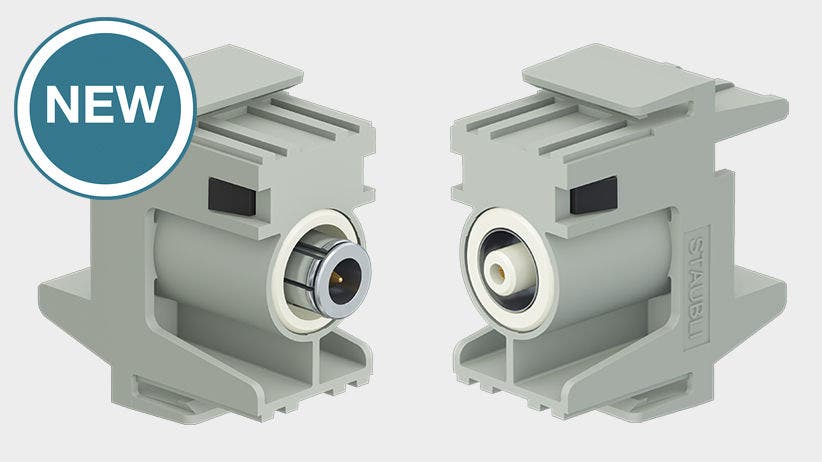

The Coaxial units are used for data as well as digital audio and video transmission.

1 Gbit RJ45 data modules are used for Ethernet communication up to 1 Gbit/s (CAT5).

1 Gbit crimp data modules are used for Ethernet communication up to
1 Gbit/s (CAT5e).

Power modules, MULTILAM Technology, IP2X protection on pin and socket side, tool-free insertion in carriers, 35 - 95 mm² conductors (AWG 1/0 - 3/0)

Power modules, MULTILAM Technology, IP2X protection on pin and socket side, tool-free insertion for 6 - 25 mm² conductors (AWG 10 - 4)

Power modules, IP2X protection on socket side, PE contacts, tool-free insertion in carriers for 2.5 - 4 mm² conductors (AWG 12 - 14). Socket carriers with protective wall.

Signal modules tool-free insertion, for 0.75 - 1.5 mm² conductors (AWG 16 - 18), 5-pole contact carriers. Socket carriers with protective wall.

Signal modules, tool-free insertion in frames, for 0.14 - 0.75 mm² conductors, 26-, 24- and 7-pole carriers. Socket carriers with protective wall.

CombiTac connection status monitoring, 10’000 mating cycles, crimp termination, for 0.14 – 0.75 mm² conductors (AWG 18 – 26).

Pneumatic modules with or without shut-off valve, preassembled, max. 15 bar pressure, 4 mm and 6 mm
