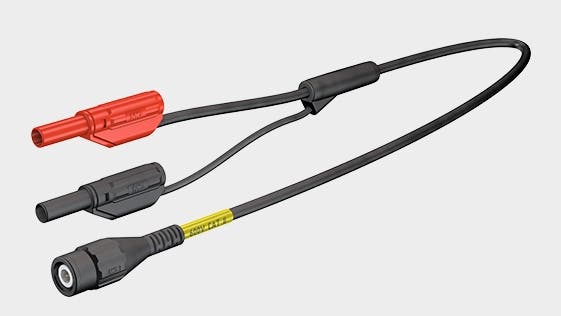

Highly flexible, fully shielded adapter leads. One end with coaxial cable with touch-protected BNC male connector, other end with stackable Ø 4 mm MULTILAM plugs with rigid insulating sleeve.
ORDER NO. | TYPE | RATED VOLTAGE/CURRENT | LEAD | |
|---|---|---|---|---|
XLAM-446/SC | 600 V, CAT II 300 V, CAT III | PVC RG58 | Au Ni | |
XLAM-446/SC/SIL | 600 V, CAT II 300 V, CAT III | SIL SILI-SC 0,5/1,0 | Au Ni |
Click on the Order No. to open the dedicated data sheet.
