ACCESSORIES FOR TEST AND MEASUREMENT
Sockets 2 mm and 4 mm
2 MM PROGRAMME

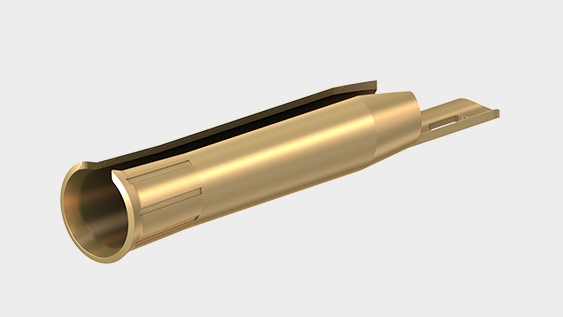

Press-in socket LB2
Uninsulated Ø 2 mm rigid, made of rolled brass sheet. Mounting by pressing or soldering into holes drilled in printed circuit boards or housings.

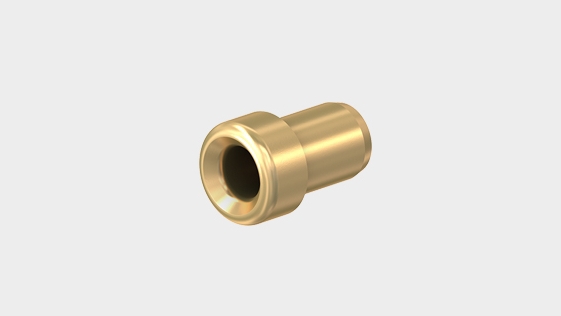

Solder-in socket LB2-A
Uninsulated Ø 2 mm rigid. Machined brass. The socket is soldered into predrilled panels.

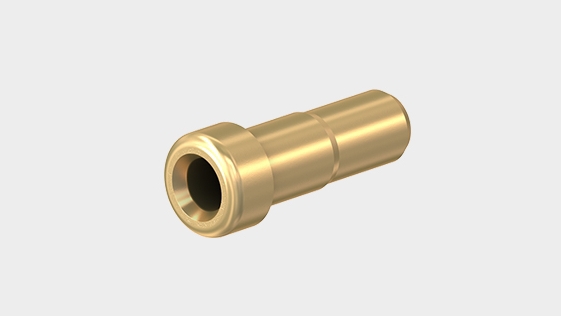

Solder-in socket LB2-D
Uninsulated Ø 2 mm rigid. Machined brass. The socket is soldered into predrilled panels.

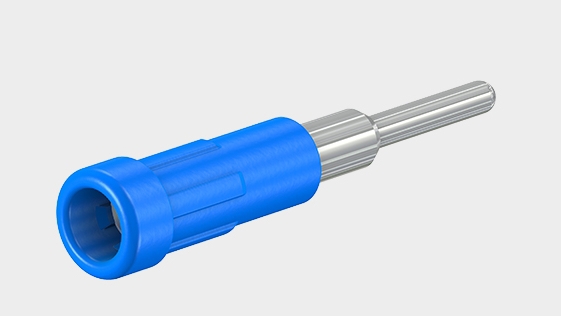

Press-in socket EPB-2N/S
Insulated Ø 2 mm rigid. Machined brass. The socket is pressed into predrilled panels of plastic, metal etc

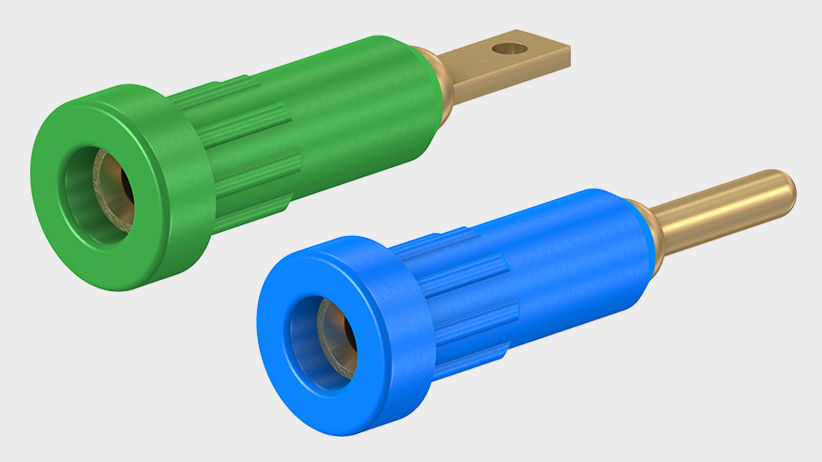

Press-in socket EB2...
Insulated Ø 2 mm rigid made of machined brass. The socket is pressed into predrilled panels of plastic, metal etc.

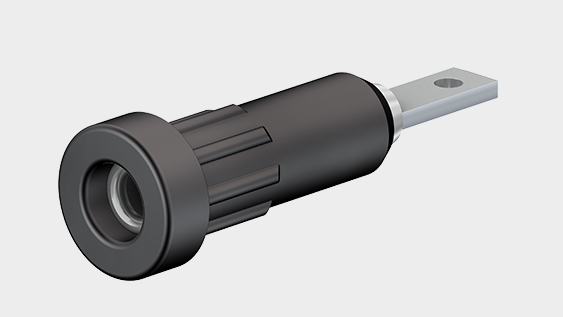

Press-in socket EB2-F
Insulated, Ø 2 mm, spring-loaded with MULTILAM. Machined brass. The socket is pressed into predrilled panels of plastic, metal etc.
Panel-mount socket LB-I2R
Insulated Ø 2 mm rigid. Machined brass. Metal thread jacket on the insulation. The socket can be screw-mounted in predrilled panels

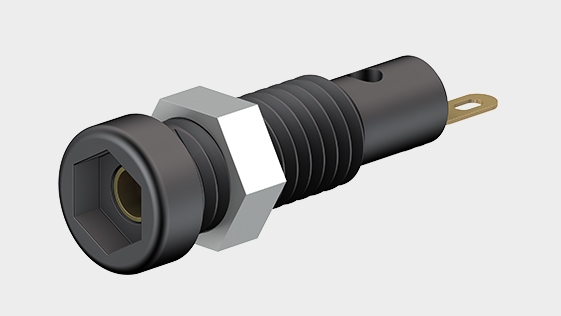

Panel-mount socket LB2-IF
Insulated, Ø 2 mm with spring-loaded MULTILAM. The socket can be screw-mounted in predrilled panels.

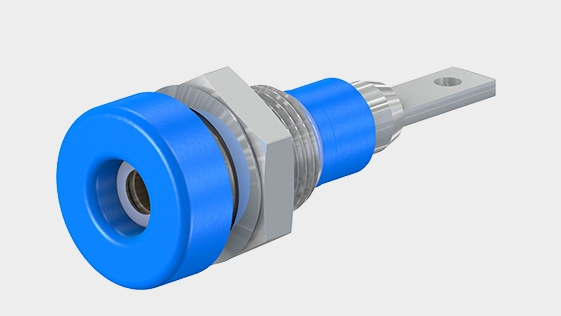

Panel-mount socket LB-IF2R
Insulated, Ø 2 mm with spring-loaded MULTILAM. Machined brass. Metal thread jacket on the insulation. The socket can be screw-mounted in predrilled panels.

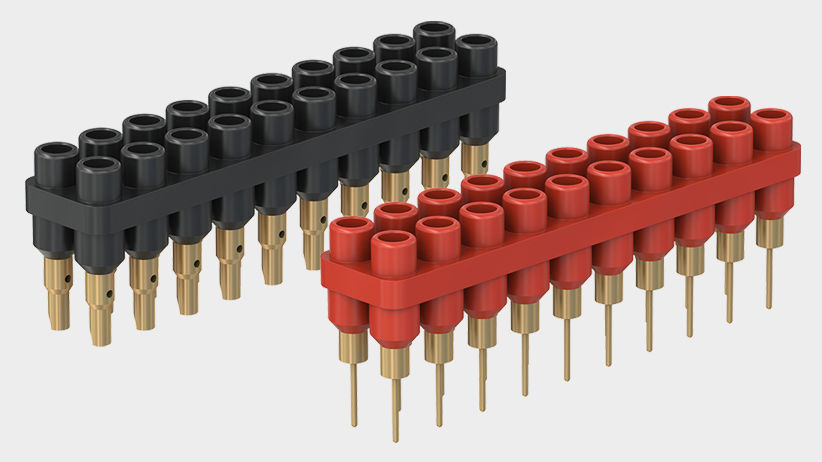

Socket strip BL2-6.../20...
20-pole socket strips, consisting of 2 rows of 10 rigid sockets with solder connection and socket spacings of 6 mm.

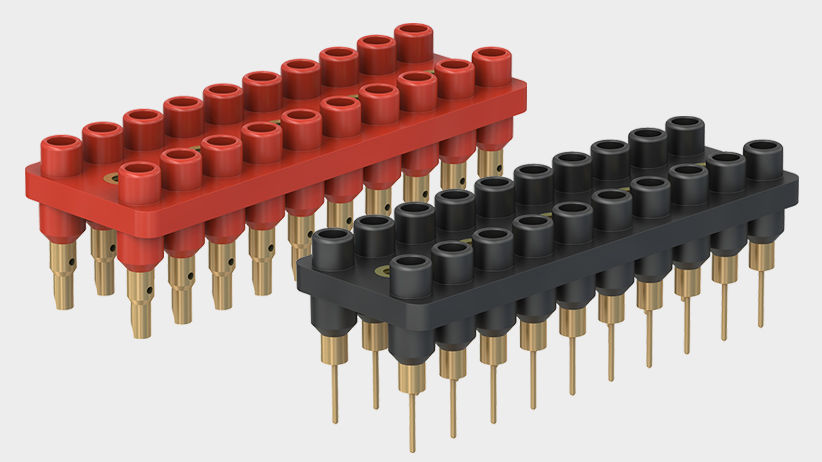

Socket strip BL2-12.../20...
20-pole socket strips, consisting of 2 rows of 10 rigid sockets with solder connection and socket spacings of 12 mm.

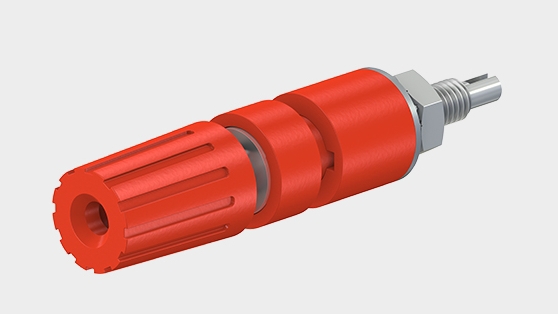

Binding post PK2-T
Insulated, with Ø 2 mm rigid socket and insulated head undetachable. With Ø 2 mm cross hole for quick wire connection.
2 MM SAFETY PROGRAMME

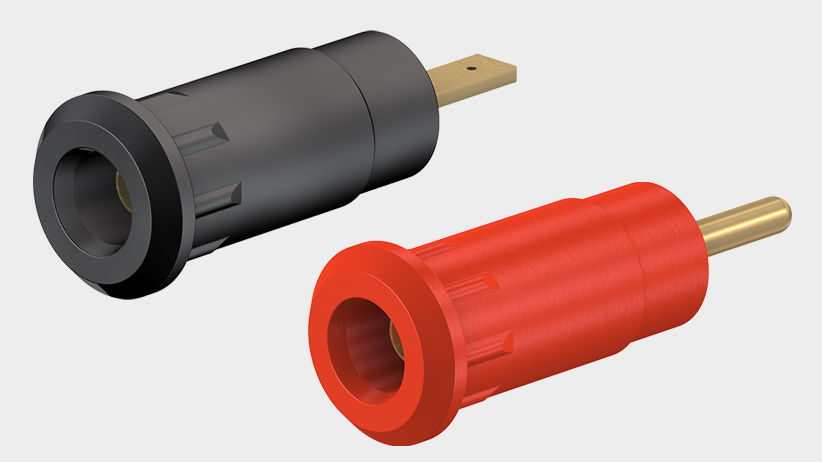

Press-in socket SEB2-...
Insulated, rigid, accepting spring-loaded Ø 2 mm plugs with rigid insulating sleeve. The socket is pressed into pre-drilled panels of plastic, metal, etc.

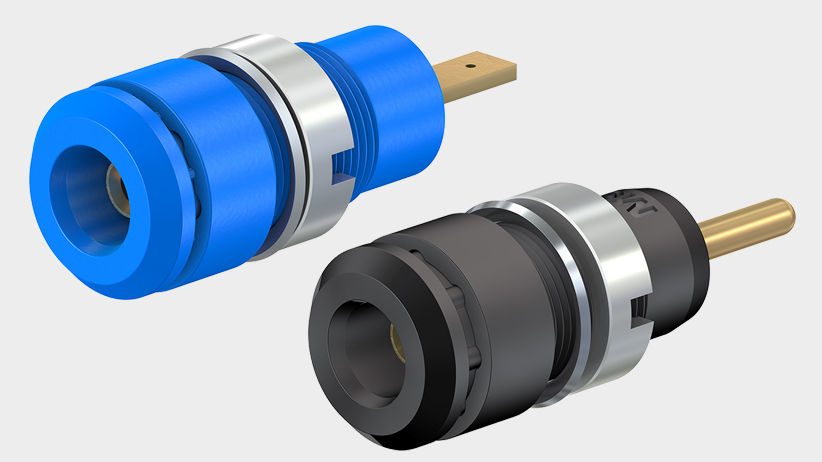

Panel-mount socket SLB2-...
Insulated, rigid, accepting spring-loaded Ø 2 mm plugs with rigid insulating sleeve. The socket is surface-mounted or assembled flush into pre-drilled panels of plastic, metal, etc.
4 MM PROGRAMME

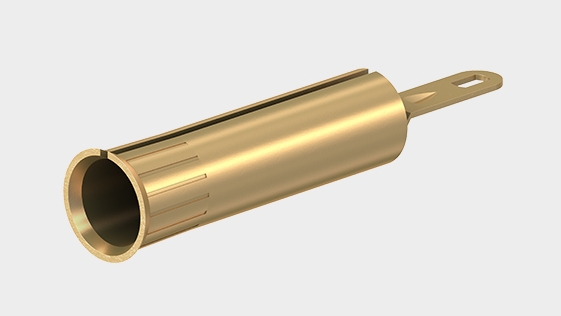

Press-in socket LB4...
Uninsulated, Ø 4 mm, rigid, made of rolled brass sheet.

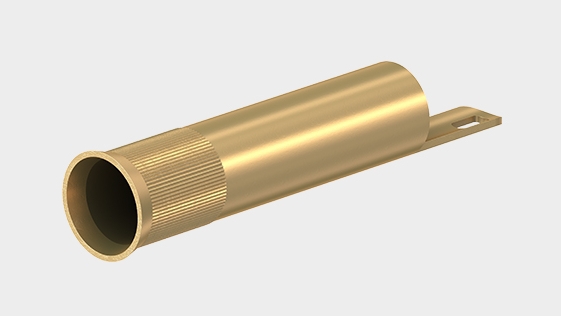

Press-in socket LB4-A
Uninsulated, Ø 4 mm, rigid, made of punched brass tubing. The socket is pressed into predrilled plastic panels or soldered into printed circuit boards

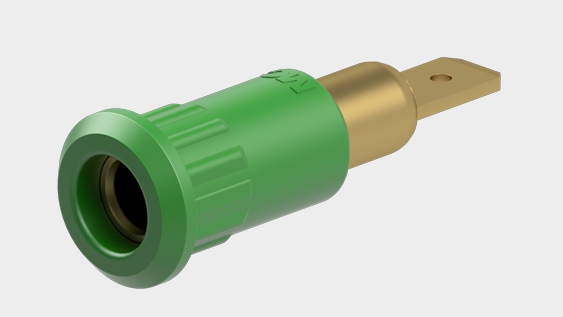

Press-in socket EB4-IF/A
Insulated Ø 4 mm rigid. Machined brass. The socket is pressed into pre-drilled panels of plastic, metal, etc

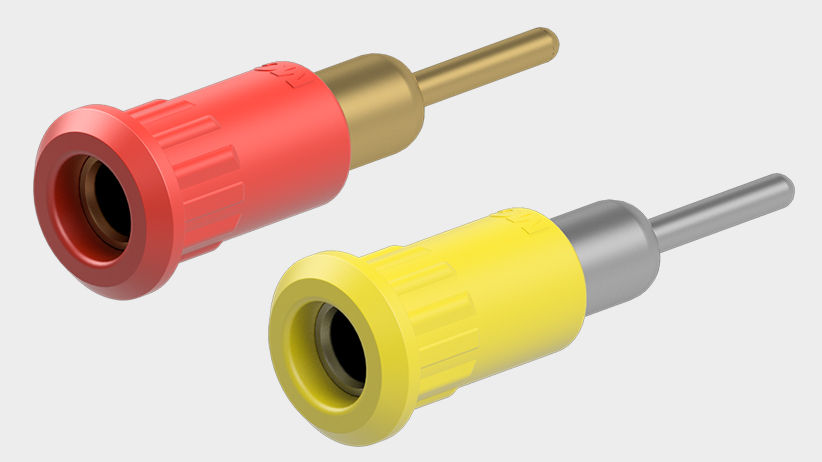

Press-in socket EB4-IR/...
Insulated Ø 4 mm rigid. Machined brass. The socket is pressed into predrilled panels of plastic, metal etc.

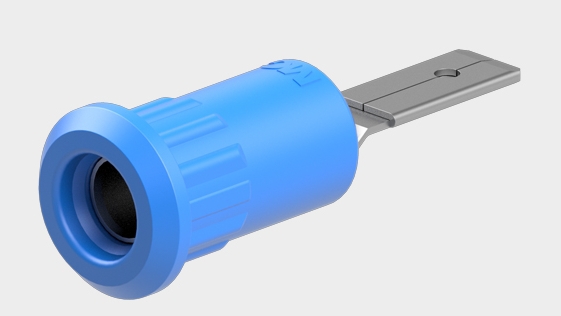

Press-in socket EB4-IFA/N
Insulated Ø 4 mm rigid. Brass sheet, punched and rolled. The socket is pressed into pre-drilled panels of plastic, metal, etc.

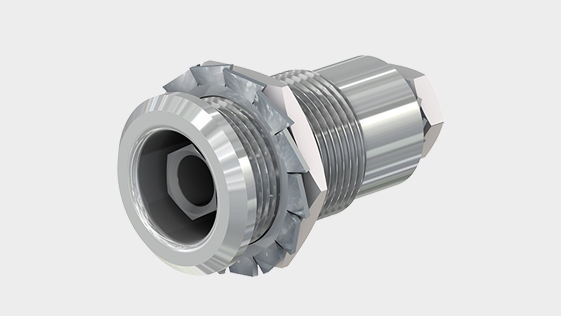

Earth socket MSLB4-G
Uninsulated, Ø 4 mm, rigid, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.
Panel-mount socket LB4H-IE/N
Insulated Ø 4 mm rigid. Machined brass. The sockets can be screw-mounted in predrilled panels.
Panel-mount socket LB4H-IF/A
Insulated Ø 4 mm rigid. Machined brass. The socket can be screw-mounted in predrilled panels.

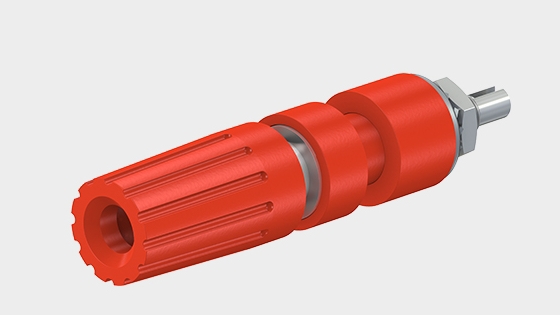

Binding post PK4-T
Insulated, Ø 4 mm, rigid, and insulated head undetachable. Ø 2.5 mm cross hole for quick wire connection.
4 MM SAFETY PROGRAMME

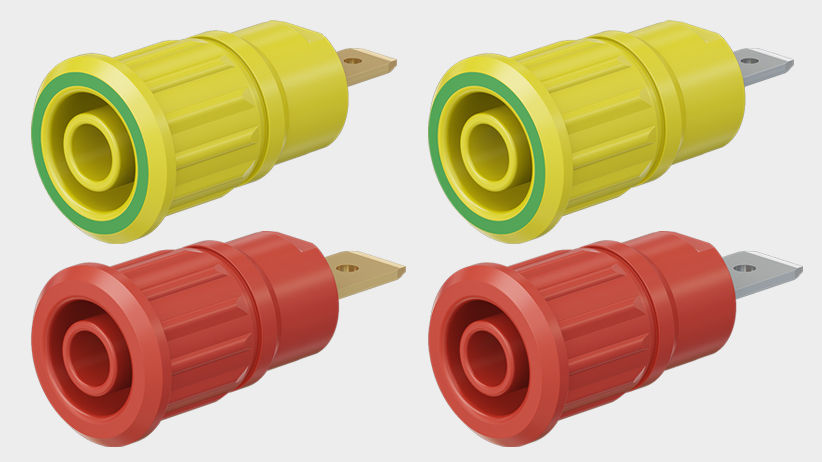

Press-in socket SEB4-F...
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.

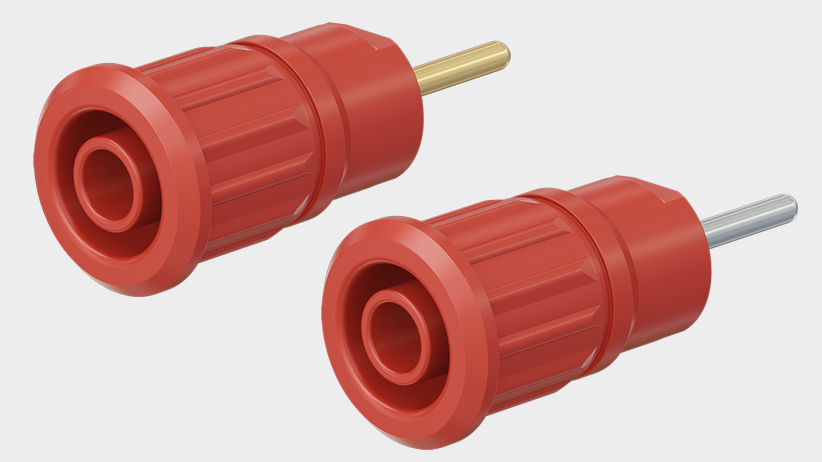

Press-in socket SEB4-R...
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Round connecting pin Ø 1.9 mm

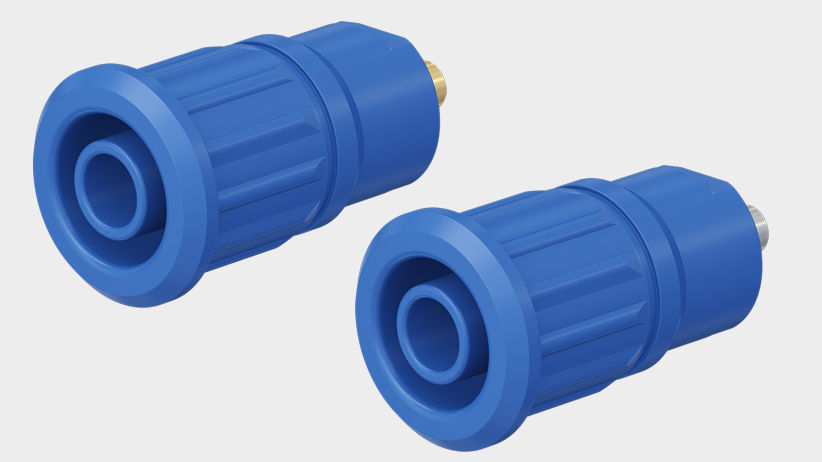

Press-in socket SEB4-E...
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Solder connection

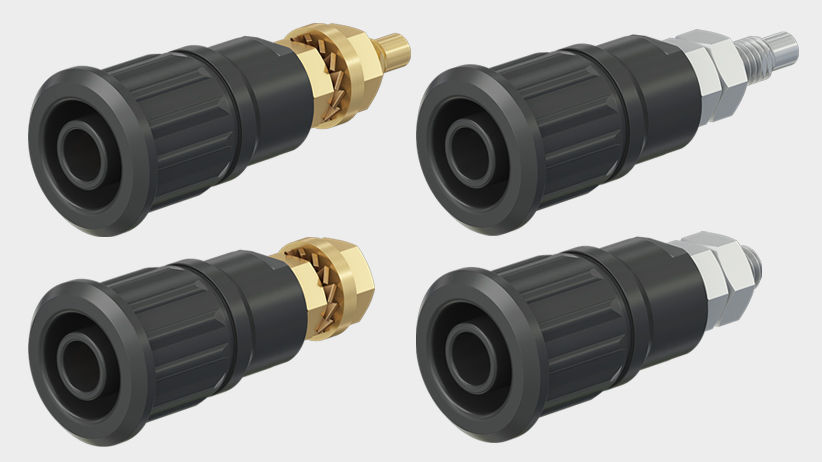

Press-in socket SEB4-G...
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. Connection: Threaded bolt M4 and soldering hole.

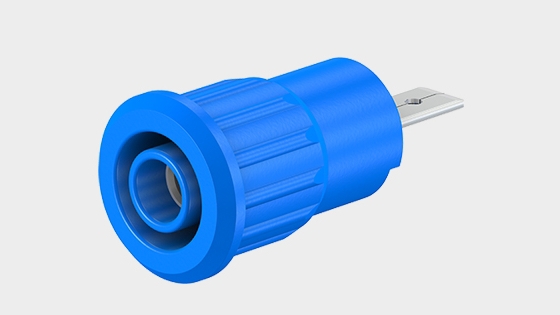

Press-in socket SEB4-F/A
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.

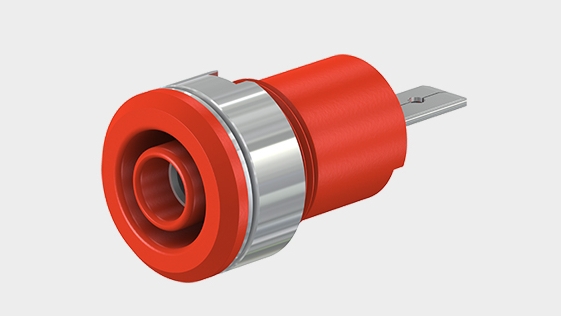

Panel-mount socket SLB4-F/A
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.

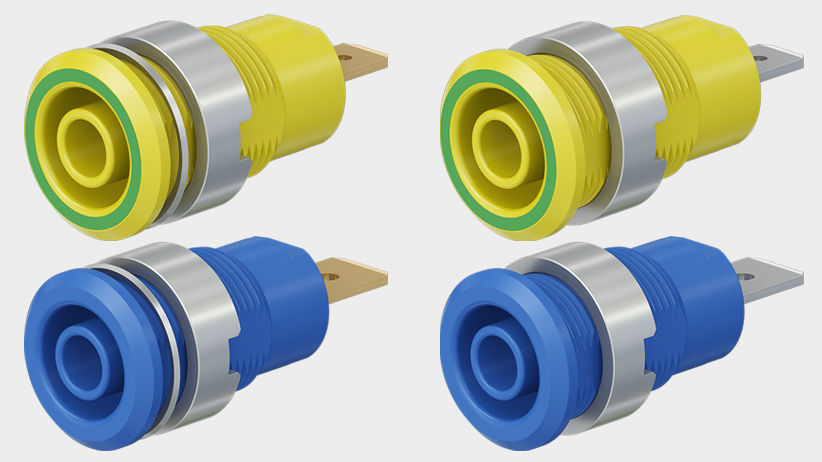

Panel-mount socket SLB4-F...
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Connection: Flat connecting tab.

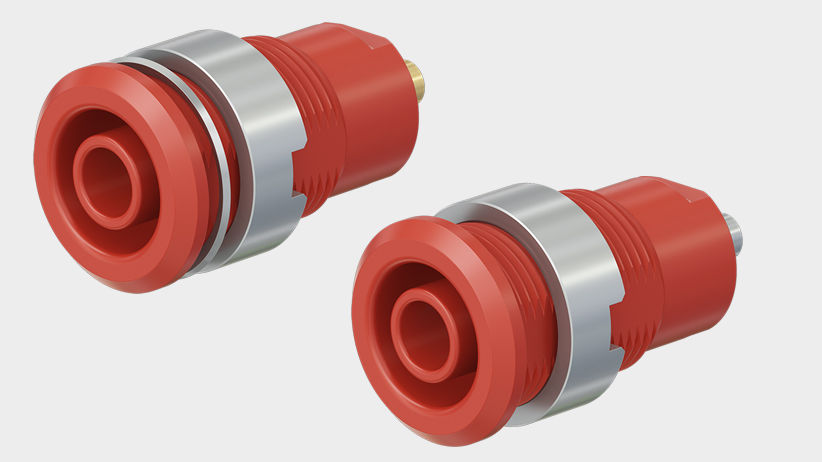

Panel-mount socket SLB4-E...
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Insulating material UL94 V-0. Solder connection

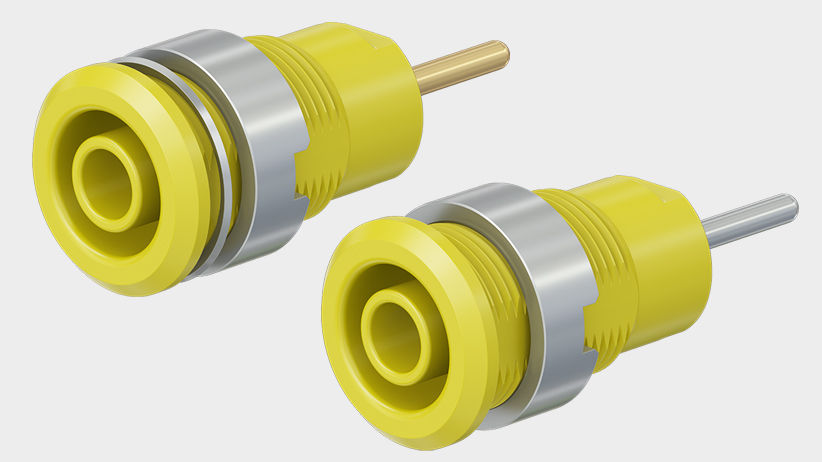

Panel-mount socket SLB4-R...
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Insulating material UL94 V-0. Round connecting pin Ø 1.9 mm

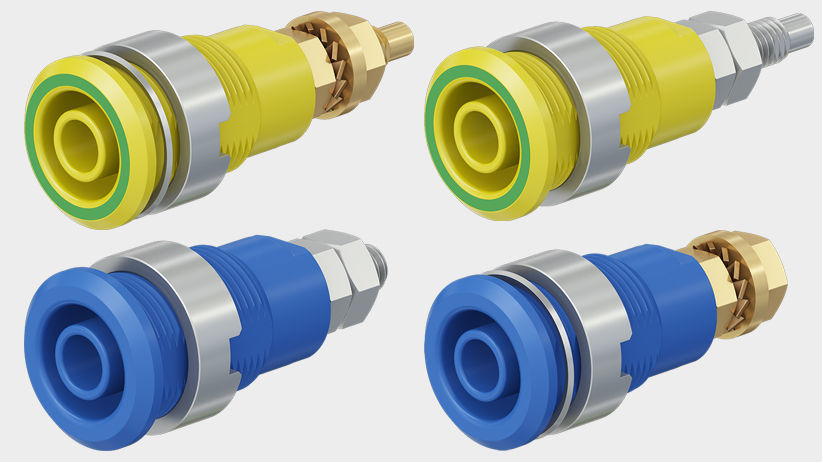

Panel-mount socket SLB4-G...
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Insulating material UL94 V-0. Connection: Threaded bolt M4 and soldering hole

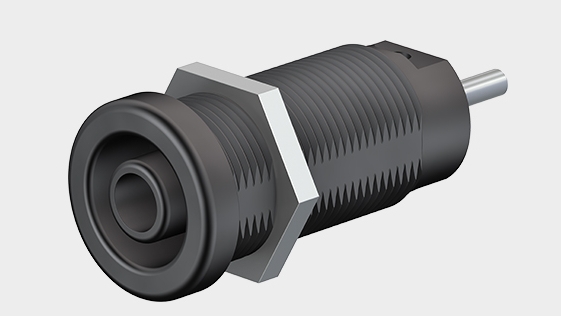

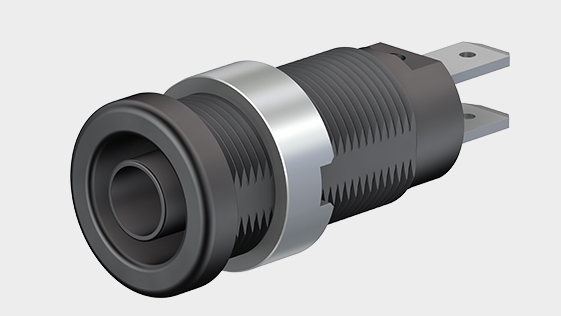

Panel-mount socket XEB-1...
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.
Panel-mount socket XEF-1R
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.

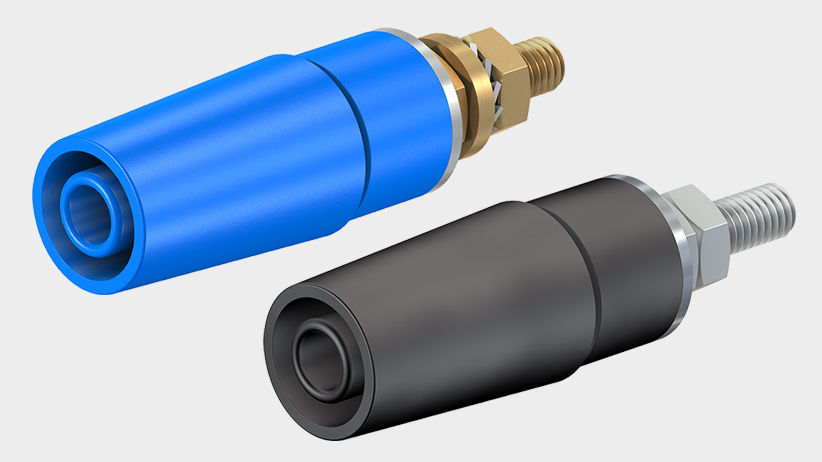

Mounting socket SAB4-G...
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.

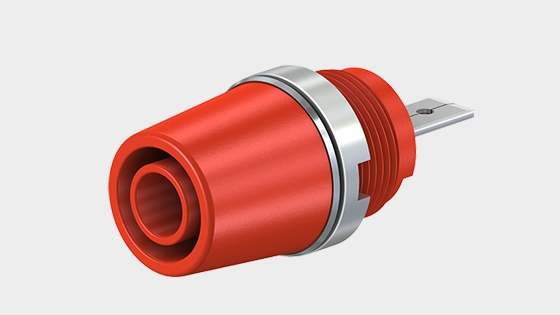

Mounting socket SAB4-F/A
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.

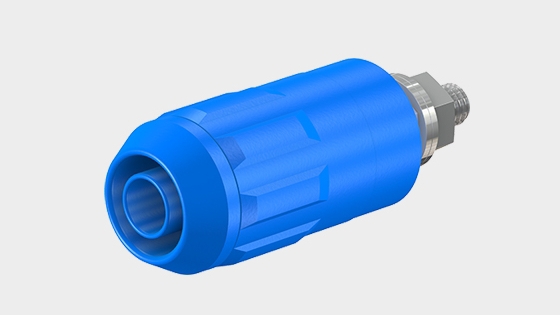

Universal socket XUB-G
Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.

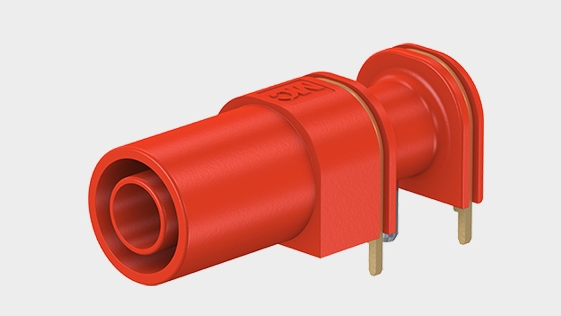

Angled socket XELW-4
For mounting on printed circuit boards, touch-protected according to IEC/EN 61010-1. The socket is directly soldered onto printed circuit boards.
